CR4509

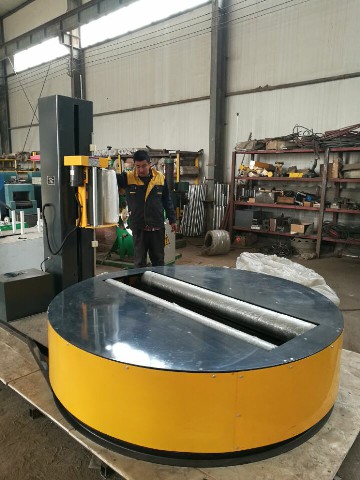

Cr-4509 dustproof and moisture-proof film reel non-woven fabric / paper winding packaging machine
The winding packaging machine specially researched, designed and manufactured by our company for the papermaking and non-woven industries. It plays a good role in protecting the roll paper and non-woven fabrics from dust and moisture The machine has the advantages of wide winding and packaging range, simple operation and convenient adjustment, and greatly improves the working efficiency
Basic features:
■ control part: it is controlled by PLC programmable controller.
■ panel part: it is mainly controlled by touch screen.
■ rotary table: 1.5kw AC reduction motor with variable frequency speed regulation is adopted.
■ power roller part: 0.75KW AC reduction motor is adopted for variable frequency speed regulation.
■ membrane frame part: 0.75KW AC reduction motor is adopted.
■ tension adjustment: resistance tension control tension; Pre stretched tension control
Technical parameters:◆
| Model | CR-4507 |
| Power | 380V、220V |
| Max packaging L | L500-1500mm |
| Packaging diameter | 500-1200mm |
|
Idler load |
2000kg |
|
Turntable diameter |
2200mm |
| Turntable High | 600mm |
|
Cylinder |
0.6MPA |
| Bearing | 1200kg |
| Dimensions | L3000mm*W2200mm*H2300mm |
