FX-03

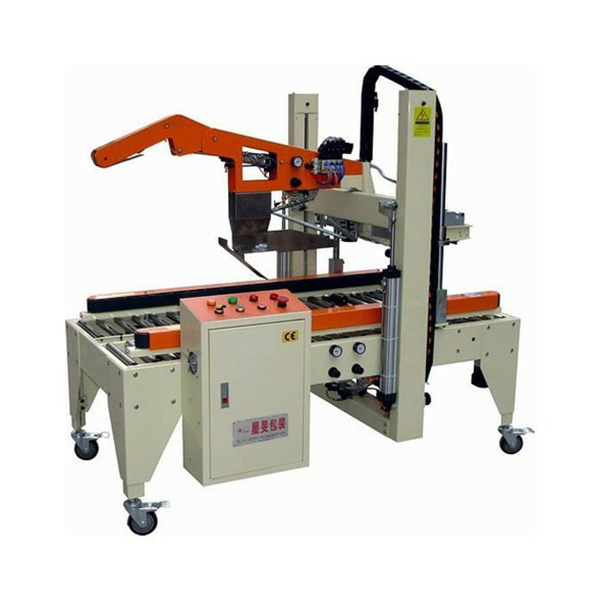

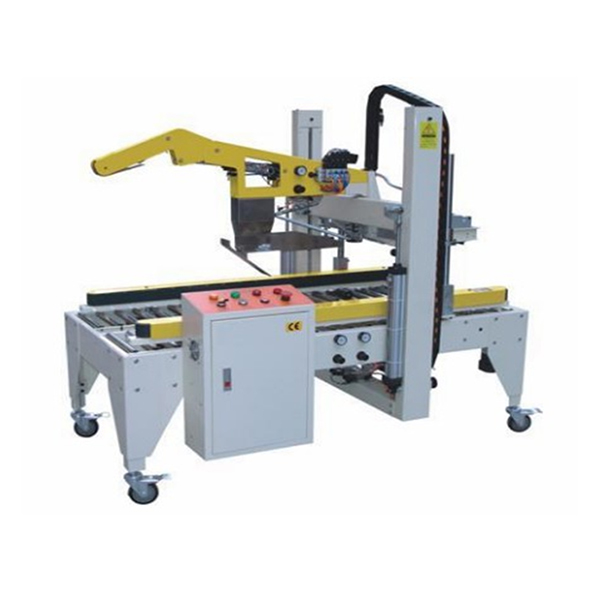

FX-03 Fully Automatic Folding and Sealing Machine

Short Description:

Automatically adjust the height and width of different specifications of cartons, and the top cover, back cover and both side covers of the carton are automatically folded in.


Product Detail

benefits

Product Tags

Automatically adjust the height and width of different specifications of cartons, and the top cover, back cover and both side covers of the carton are automatically folded in. This series is a single machine that can be combined and matched, H-shaped four-corner side sealing series, online matching, combined into (I-shaped automatic sealing) operation; light and durable, simple operation, no noise, standard specifications and parts are available at any time.

Video Show

Technical Parameter

Applicable carton (L)200-500 \ (W)150 -500 \ (H) 150-500mm

The height of the table top is minimum 650mm, maximum 800mm

Sealing speed 750 boxes per hour (ctns/hr)

Mechanical size (L)1730mm (W)910mm (H)1570mm

Use power supply 110/220V single phase, 50/60 Hz or customer specified

Use air source 5kg / cm2

Use tape 48mm, 75mm alternative use

Machine weight about 300 kg

3
5

FAQ

1. Can the product be used with an assembly line?
The machine can be used as a stand-alone machine, or it can be used in conjunction with an assembly line.

2. Can any kind of box be sealed?
According to the size of your carton, product weight, tempo, and sealing method, we have the corresponding machine for you to recommend.
