Intelligent Free Hands, Intelligent Leading Packaging!

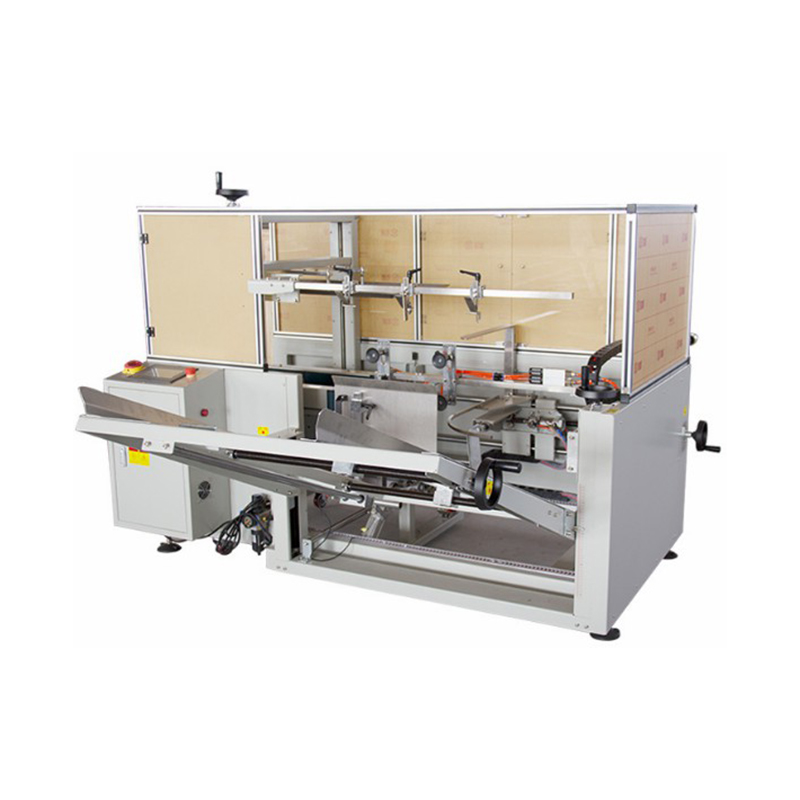

KX-01 vertical bottom taper or Gluer

Automatic box/carton/case Opening erector machine

Short Description:

Non-limit on the Case Dimension
Machine can be modified for a variety of case dimensions.

High Speed
Increases speed to maximum of cases per minute.

Stainless Steel Frame or Components

Automatically vertical and bottom seal with tape.

Widely used in various industries and abroad, such as food, medicine, toys, tobacco, daily chemicals, and electronics.


  • :
  • Product Detail

    benefits

    Product Tags

    Product Features

    1 High-performance carton erector/sealer.
    2 For heavy usage with quick and simple carton size changeover. Carton size changeover,no tools required.
    3 Handles a wide range of carton sizes.
    4 Erector line incorporates our exclusive 2″ or 3″ pop-out pressure-sensitive “High Speed” tape heads with tab adjustment.
    5 Food grade 304 stainless steel for 21 CFR 110 compliance.

    1. Adopt high-quality electrical components and pneumatic components; adopt a vertical storage cardboard method, which can replenish the carton board at any time without stopping the machine.

    2. The rational design of the bottom sealing machine, synchronous absorption and forming, the folding bottom and the back cover are simultaneously formed at one time; the volume is light, the machine performance is precise and durable, the operation process is vibration-free, the operation is stable, the life is long, and the efficiency is high.

    3. It is suitable for packaging of the same carton size at the same time. If you need to change the carton size, you can adjust it manually. The required time is 1-2 minutes.

    4. Install a transparent plexiglass protective cover to automatically stop when the door is opened to avoid accidental operation

    5. It can be operated on a stand-alone machine or used in conjunction with an automated packaging line.

    Video Show

    Technical Parameter

    machine type KX-01
    Power supply/power 220V 50/60HZ    400W
    Applicable carton L: 250-450 W: 150-400
    H: 120-350mm
    Open box speed 8-12 boxes/minute
    Tape width 48/60mm (use one alternatively)
    Use air source 6-7kg
    Machine size L2000*W1900*H1650MM

    Size Layout


    Overhead view


    Floor plan


    Floor plan

    FAQ

    1. How to choose the machine that suits me?
    You can tell me the size of the box you need, and the rate of work, according to your needs, I recommend a suitable model for you

    2. Does it support customization?
    If the size of the machine you need is not within the scope of our standard machine, we can provide you with customized services

    3. Can all cartons be opened?
    There are certain requirements for your carton. In order not to affect your use, the carton must not be too soft, not wet, and the indentation must be deep.
