MD-09

Stacker MD-09 suitable for assembly line

Short Description:

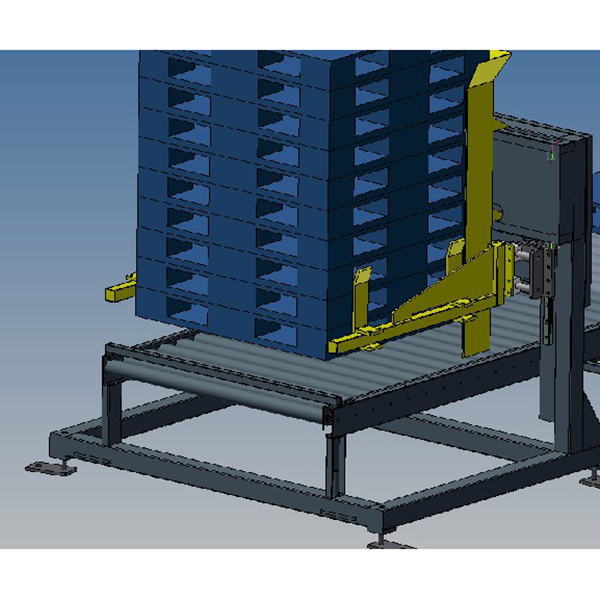

After the forklift puts the empty pallet on the conveyor, the cylinder of the left and right mechanism of the horizontal plate moves to insert the second pallet at the bottom, and then the lift cylinder rises to lift the second and above pallets, and the bottom pallet is transported out.


Product Detail

benefits

Product Tags

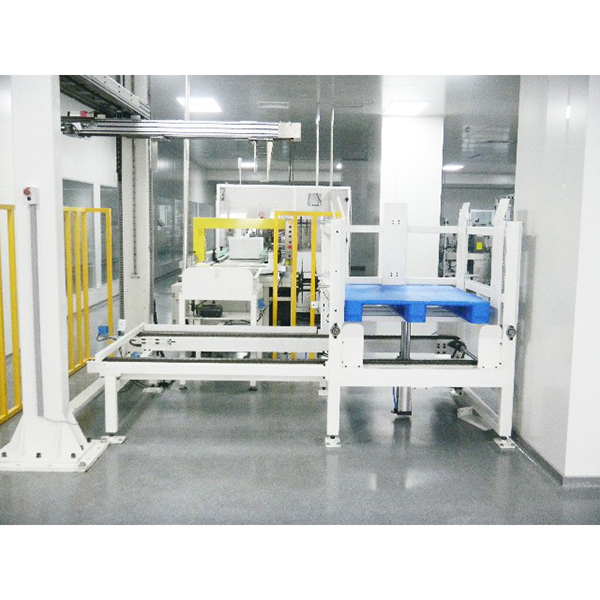

After the forklift puts the empty pallet on the conveyor, the cylinder of the left and right mechanism of the horizontal plate moves to insert the second pallet at the bottom, and then the lift cylinder rises to lift the second and above pallets, and the bottom pallet is transported out. After the pallet supply is completed, the lifting cylinder lowers the rest of the pallets again to place the conveying surface, the cylinder of the left and right mechanism of the horizontal inserting plate moves out, the lifting cylinder rises to insert the second pallet, and the lifting cylinder raises the cylinder again until it leaves the bottom pallet. The pallet is transported out by the line, and the above action is repeated to supply all the pallets, and then the next stack of pallets is supplied.

Technical Parameters And Main Equipment Configuration

1. Machine size: L2100*W1700*H2034mm

2. Stacking speed: ≤3pcs/min, 10 pallets can be placed at one time

3. Power supply: 220V/380V, 50/60Hz;

4. Power components: Taiwan Shengbang Motor

5. Sensor: Omron

6. Cylinder: Airtac Taiwan

7. Bracket: Welded steel, painted and sprayed plastic

8. Tray size 1100mm*840mm*130mm

3
4

FAQ

1. I did not find the machine exactly meet our requirements.
All our machine can be customer built to meet your special needs.

2. We are not sure what design can fit us best.
Our engineers can be your factory to work out the suitable design. We offer on-site service in your factory. Our service is from design to installation.

3. Do you offer training service?
We will instruct your operators, team leaders and electric engineers before delivery in our factory, or train them after installation in your factory. And it is free charges.

4.After-sale service.
Contact and telephone number is provided by us for 24 hours/7 days a week support. We will respond the help within 24 hours. Our engineers are available to service overseas if necessary.
